Full-auto blowing machine(0.6L)
Category：
Full-auto blowing machine(0.6L)

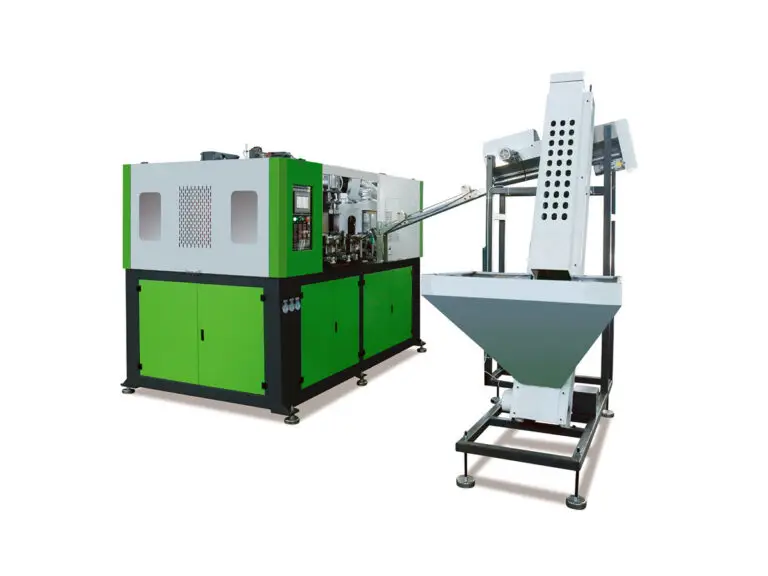

Full Automatic Bottle Blowing Machine
Full-auto blowing machine(0.6L)
Details
– Using computer touch screen, stable performance, simple operation
– Energy saving design, the mechanical part of the compact structure, reasonable
– With fault alarm, diagnosis system, make maintenance more convenient
– Bottle feeding, heating, blowing, bottle out are all automatic, high efficiency
– German Festo and Japanese SMC pneumatic components can be selected according to customer needs
– The bottle is pollution-free and can meet the needs of food hygiene. The finished product rate can reach more than 99.9%
TYPE | ITEM | UNIT | YM-BL600-2 | YM-BL600-4 | YM-BL600-6 |
Clamping | Clamping force | kn | 180 | 360 | 360 |
Clamping stroke | mm | 100 | 100 | 100 | |
Stretching stroke | mm | 370 | 370 | 370 | |
Bottom stroke | mm | 30 | 30 | 30 | |
Cavity pitch | mm | 76.2 | 76.2 | 76.2 | |
Number of cavity | cavities | 2 | 4 | 6 | |
Container | Theoretical output | bph | 2400-3000 | 3700-4800 | 5500-6800 |
Max container volume | l | 0.6 | 0.6 | 0.6 | |
Max.neck outer diameter | mm | 18-38 | 18-38 | 18-38 | |
Max. container diameter | mm | 66 | 66 | 66 | |
Max. container height | mm | 240 | 240 | 240 | |
Electrical system | Number of Lamp | pcs | 14 | 28 | 32 |
Max. heating power | kw | 26 | 54 | 62 | |
Installed power | kw | 28 | 58 | 64 | |
Actual electricity consuming | kw | 10 | 17 | 24 | |
Air system | Operating pressure | kg/cm2 | 7 | 7 | 7 |
Low pressure air consumption | Ltr/min | 1600 | 2000 | 2000 | |
Blowing pressure | kg/cm2 | ≤35 | ≤35 | ≤35 | |
High pressure air consumption | Ltr/min | 2000-2500 | 3000-3800 | 4600-5000 | |
Machine | Machine size | m | 2.0×1.5×2.2 | 3.5×2.0×2.2 | 4.0X2.1X2.2 |
Machine weight | T | 2.0 | 3.9 | 5.0 |
